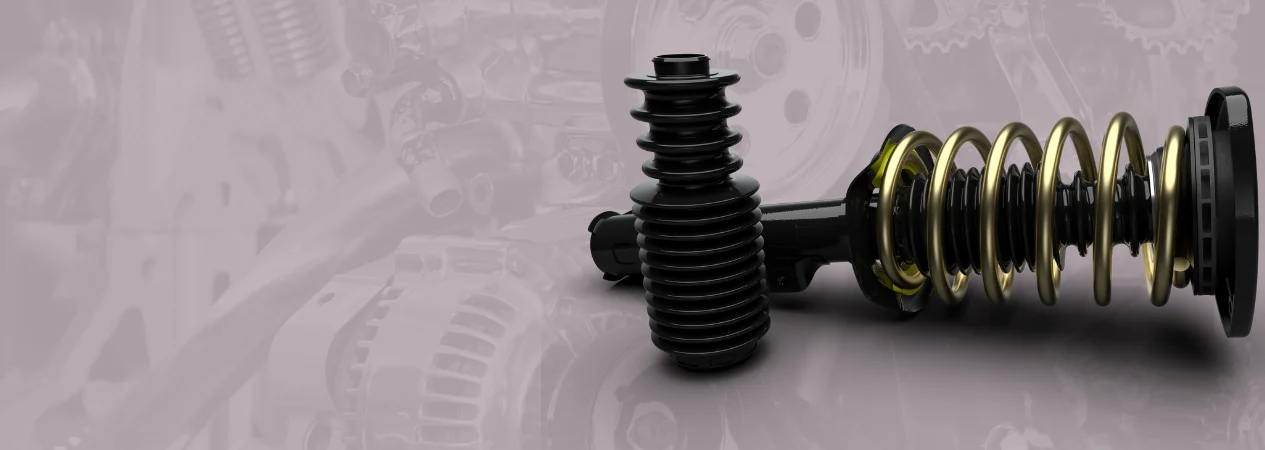

Automotive Boot Bellows
Durable Materials
Leak-Proof Sealing
High Load Capacity
Long-Term Reliability
High-Pressure Resistance
Automotive Bellows Manufacturing from Prototype to Bulk Supply
The automotive boot bellows manufacturing starts with understanding these critical components. Bellows serve as flexible seals throughout modern vehicles.
Modern cars contain dozens of these special rubber parts. The manufacturing transforms basic materials into precision components. The complex manufacturing process ensures that the components last for many years.
The automotive boot bellows manufacturing cycle requires thorough planning. The designers have to take into account temperature fluctuations, chemical accidents, and mechanical stresses.
Ready to See your Idea into Reality
We have served 264+ Clients so far…Discuss your Requirements with Our Experts.
Automotive Boot Bellows In Industry
Our Products
Main Steps for Automotive Bellows Manufacturing
Prototype Phase
The automotive boot bellows manufacturing project begins with solid communication. The customers share CAD files or physical samples with engineering teams. The technical staff carefully reviews all specifications, including dimensions, flexibility requirements, and temperature ratings.
The engineers take into account such aspects as exposure to heat, contact with chemicals, and necessary service life. The environmental conditions play a huge role in determining the right compound.
The initial samples often come to life through 3D printing or CNC machining. These technologies allow the quick creation of test pieces without expensive tooling. The manufacturers can produce small quantities for testing within days, not weeks. Many customers get tangible parts to evaluate before committing to production tools.
Testing, Design Refinement, and Approval
The soft tooling is necessary for creating test runs of 50-200 pieces. These are more affordable temporary molds that have yet to generate representative samples. The parts undergo rigorous testing for proper fit and function. The engineers test the mobility and capacity of sealing and installation.
It is also the critical stage of evaluation of the design revisions. Wall thickness, flex points or attachments could be changed by the engineers. The manufacturers change the designs until everyone approves the final design specification. Only then does the project move toward permanent tooling development.
- Simulation testing often predicts performance before physical prototypes
- Customer feedback loops improve designs
- Surface texture requirements are evaluated during testing
- Prototype colouring may differ from production versions
- Assembly trials with mating components ensure proper integration
Material Selection for Bellows
he engineers must balance durability, flexibility, and cost considerations carefully. The applications also demand certain material properties in order to work effectively.
1. Rubber Compounds
EPDM rubber is suitable for use where there is extreme weather exposure. The material resists degradation from heat, ozone, and UV radiation effectively. The custom automotive rubber bellows made from EPDM last for many years.
2. Silicone Options
Silicone offers temperature performance in demanding environments. The parts remain flexible even in extreme cold down to -65°C. The material handles high-heat situations up to 250°C without degradation. Silicone bellows cost more but deliver reliability in harsh conditions.
3. Special Materials
Neoprene is best for environments which require oil and fuel resistance. The compound maintains properties despite contact with petroleum products. Black automotive rubber bellow boots often use this versatile material.
Nitrile compounds protect against grease and hydrocarbon exposure. These are materials which can withstand the engine compartment. The parts maintain flexibility while resisting chemical breakdown over time. Their dark colour helps hide inevitable road grime.
4. Other Alternatives
TPE materials offer environmental benefits through recyclability options. These thermoplastic elastomers weigh less than traditional rubber compounds. Manufacturing processes produce less waste with these newer materials.
Countries
Industries Served
Projects
Clients
Tooling and Mold Development
The rubber & silicone automotive bellows require precision molds for consistent production. The tooling phase transitions prototypes into manufacturable products effectively. The molds ensure repeatable quality for thousands of cycles.
Hard steel molds become necessary for serious production quantities. These durable tools withstand the pressure and heat of manufacturing. The manufacturers calculate the number of cavities based on volume requirements. Multi-cavity designs increase output but cost substantially more initially.
The mold designers focus on achieving tight dimensional tolerances. Surface finish requirements are carefully included into tool specifications. The venting and flow considerations prevent common production defects.
Tooling Lead Time, Durability, and Production Efficiency
The production molds represent high upfront costs in the development cycle. However, they reduce the unit price for large orders. Most quality tools last between 100,000 and 500,000 cycles. Many companies amortise tooling costs across production volumes.
The lead time for production tooling ranges from four to eight weeks. The complex designs with multiple actions take longer to complete. Manufacturers often suggest design modifications to improve the result.
- The use of flash control features eliminates the formation of extraneous material.
- Part releases are clean-up systems
- The composition of the steel used impacts the service life
- Controlling temperature in mould regulators enhances uniformity
- Frequent cleaning of tools will eliminate stoppages in production
Manufacturing Methods
The methods of production may differ with the needs of materials and designs. High durability automotive boot bellow needs appropriate manufacturing approaches.
1. Compression Molding
Traditional compression molding remains common for rubber bellows components. The process forces uncured rubber into heated mold cavities. The engineers carefully control pressure, temperature, and cure time. This method works well for thick-walled, durable parts.
2. Injection Processes
The injection molding delivers fast cycle times for high-volume requirements. The technique excels when working with thermoplastic elastomers. The machinery is automated, which ensures on-time quality of production.
3. Blow Molding
Blow molding produces hollow and thin-walled bellows. The process starts with a tube that expands into shape. This technique works well for larger protective boots.
4. Hydroforming
Hydroforming shapes metal bellows through fluid pressure application. The method creates precise, consistent wall thicknesses throughout. Metal bellows are provided with a high level of temperature and pressure.
5. Dip Molding
Dip molding produces thin and highly flexible protective covers cost-effectively. The process involves dipping forms into liquid compounds repeatedly. The parts cure between dips to build up the desired thickness.
Quality Testing and Validation
The rigorous testing ensures reliable performance in demanding conditions. The manufacturers document results for complete quality traceability. The testing regimen prevents potential field failures effectively.
Dimensional verification happens through coordinate measuring machines. These systems check critical dimensions against CAD specifications precisely. Technicians inspect parts for flash, voids, and other visual defects. The statistical process control monitors critical characteristics.
Flex cycle testing mimics the years of service at fastened periods. Bend features. The parts are bent thousands of times under controlled conditions using test equipment. The engineers observe cracking, tearing or constant deformation signs. Durability is accurately predicted by this testing. This testing predicts durability accurately.
Pressure and Temperature Validation
Pressure tests verify sealing capability for enclosed bellows designs. Test stands apply air or fluid pressure in controlled increments. The components should be of a higher integrity, at given pressure levels, at all times. Even minor seal failure is identified by leak detection equipment.
The temperature chamber test verifies performance over the required ranges. The sections alternate between extreme heat and cold. The materials should be flexible and structurally sound all the way through. The tests guarantee the reliability of working in any weather condition.
The best manufacturers invest in advanced production technologies. They develop special compounds for specific automotive applications. The companies know how their components interact with surrounding parts. They balance quality requirements against production costs effectively.
